Application

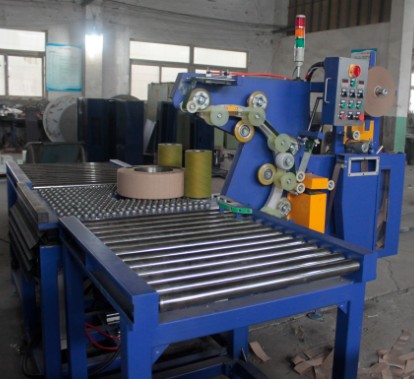

Cable coil wrapping machine (cable wrapping machine) is an machinery for cable wire, hydraulic tube. It is an coil wrapper with highly packing efficiency for coil package.


Features
1. Automatic material cutting and storage.

2. The overlap of packing tape can be adjusted by inverter.

3. Material automatically cutting.

4. Different packing material can be choose .

5. Special designed conveyor for loading and unloading.

6. Supporting rollers are covered by polyurethane.

7. Guardrails, soft starts and stop for safety operation.

8. Convenient for hoisting, safe and reliable.

9. Overloading protection.

10. Both Electric limitation and mechanical limitation for operation system.

11. The friction between wheels and ring is adjustable.

12. Height of the turning ring could be adjusted for different OD by motor.



Another information:

●Once wrapping: the packaging is completed at one time.

●Twice wrapping: the packaging is completed at twice. When the diameter and width of the unpackaged object is large, the tape storage on the ring cannot store enough packaging tapes at one time, so the “Twice Wrapping” mode shall be selected to package the object at twice.

●only touch corresponding button and press “Enter” when selecting “Once Wrapping” or “Twice Wrapping”.

Technical Data

ITEMS GW300
Object height 10-200mm
Object OD 400-700mm
Object ID 200-300mm (Special design for 100mm is available)
Object weight 10-100kg
Wrapping tape PVC/PAPER/KNITBELT
Ring speed 20~90r/min
Working level height 800mm
Overlap rate 20%~90%
Power output About 1.5kw
Power supply 380V, 3phase 5wires
Air source 6~8kgf/cm2
