For steel industry packaging
Packing machine for steel industry.
Read More
master jumbo coil packing machine
The different packing types summarized in attached file and for each of these coils the ID can be 508mm or 610mm and the OD can vary from 800mm, 850, 900, 950, 1000, 1100, 1200, 1300,…
packing machine for acsr wire and pc wire coil
The way to packing the wire coil with crane loading and uploading. The package speed controalable. Ring speed adjustable for overlap changing. Program control for wrapping and safety protection.

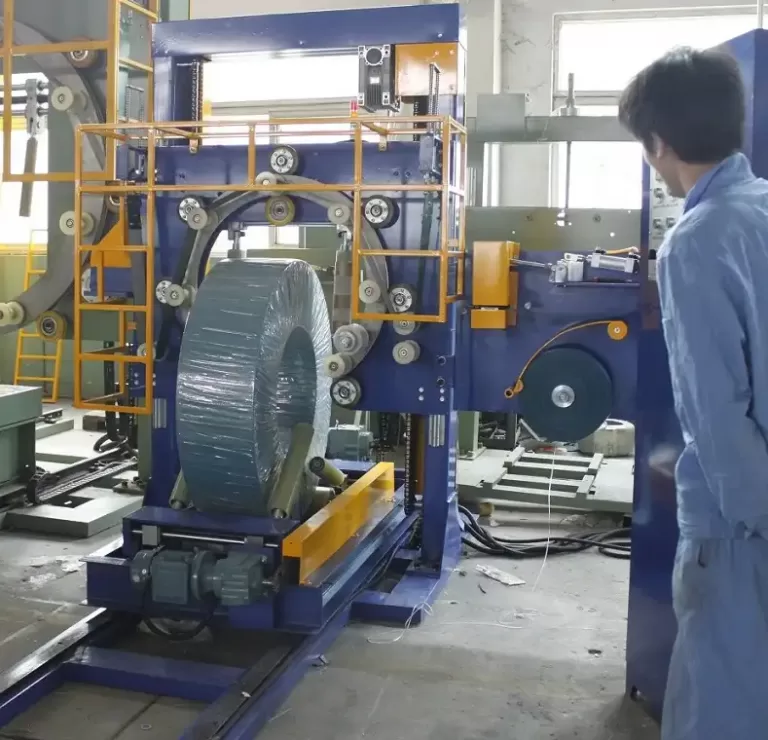

how to packing the coil by coil packing machine
This is an coil wrapping machine designed with fixed coil wrapping station and movement wrapping machine. It is a economice solution for heavy steel coil packing with crane loading and unloding. info@shjlpack.com www.shjlpack.com
Panel and board stretch wrapper
Operation: Boards into the horizontal wrapping station after the front turntable changes it’s direction Roller conveyor pushes the boards to wrapping position automatically while sensors detect it Boards stop automatically while it at the wrapping position. Film cutter…
Automatic coiler for hose
Automatic coiler made in China with hose coiling and strapping machine for online hose counting length, coil making, cutting, eye throught strapping and packing. The solution vary from hose size and coiling size. The manufaturer provides the automation control system to help online production, packing and handling the hose.
Automatic coiling and strapping machine
This is automatic pipe coiling and strapping machine specialized for vertical coiling and strapping, such as pipe coil, hose coil, etc. After coiling and strapping, pipe coils are well-shaped. The machine saves labor force and improves work efficiency that plays a key role in your production procedure and is popular in modern packaging industry.
Automatic pipe coiler
Packing process：
Pipe from extruder/spool through the tensioner and counter
Automatic feeding the pipe to coiling station.
Pipe head clamped and turning for coiling
Automatic layer making and coil making.
Automatic cutting the pipe while pipe length reach to the setting.
Holding the pipe coil and turning 180 degree.
Automatic strapping 3/4/6per requirement.
Pushing out the strapped coil.
Coiler turning 180 degree for re-coiling.
Railway automatic steel coil transfer car
Steel coil transfer car is powered by the low voltage electricity from the railways. The power source AC 380V is transformed into AC 36V two-phase and are respectively connected to the two rails. S’ and arc-shaped railways flat carts are available as actual transfer situation. It also can be applied in the high-temperature environment, ferry condition and flammable, explosive environment.
It also can be used in the hydraulic lifting device can be installed on the flat carts. The DC motor is stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
HOT! Bundle Tube Automatically
New Year 2016 is coming soon. And our automatic tube bundling machine is cared by more and more users. Here are some information for you. Are you going to use inline or offline automatic…
Automatic copper belt/copper allay strip coil weld system
The Automatic copper belt/copper allay strip coil weld system is prepared to do the work as a reliable multi-coil recoiling line. It is able to produce a perfect shape of multi-coil package without create any scratch to the material.
The Multi-coil weld line has to be provided with manual functions fully controlled by the operator through necessary and suitable foot button and remote control. This is a system to weld the slit copper belt: tail–>head–>tail… By this way, all strips will be linking together. It helps customer reduce the loading time greatly.
