Application

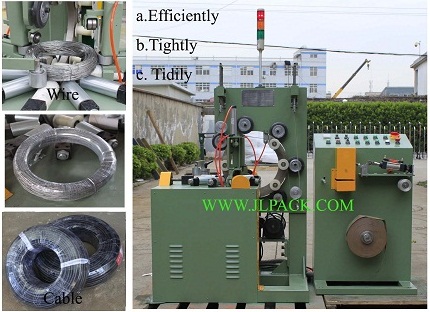

Cable wrapping machine (horizontal wrapping machine) was designed mainly for cable wire industries packaging solution. The machine can be special designed according different specification and packing material.


Features
1. Excellent collections. Well-known brands are adopted for main components.

2. The overlap of packing tape can be adjusted by inverter.

3. Material automatically cutting.

4. Packing tape tension can be adjusted.

5. Difference packing material can be choosing.

6. Supporting rollers are covered by polyurethane.

7. Up and down supporting rollers are available.

8. Separate electrical box for safe operation and technical testing and trouble-shooting.

9. Special mechanical brake for dispensing the material with best tension to avoid material folding.

10. BOPP tapping device

11. Wrapping and tapping together at one time.

12. Friction between wheel and ring is adjustable.

Technical Data

ITEMS GW200
Object height 50-150mm
Object OD 250-450mm
Object ID 150-250mm (Special design for 100mm is available)
Object weight 5-50kg
Wrapping tape PVC/PAPER/KNITBELT
Ring speed 30～90r/min
Working level height 800mm
Overlap rate 30%~90%
Power output About 1.5kw
Power supply 380V, 3phase 5wires
Air source 6～8kgf/cm2
